HP LaserJet 5200TN (Remanufactured) Q7545A – The Printer Depot

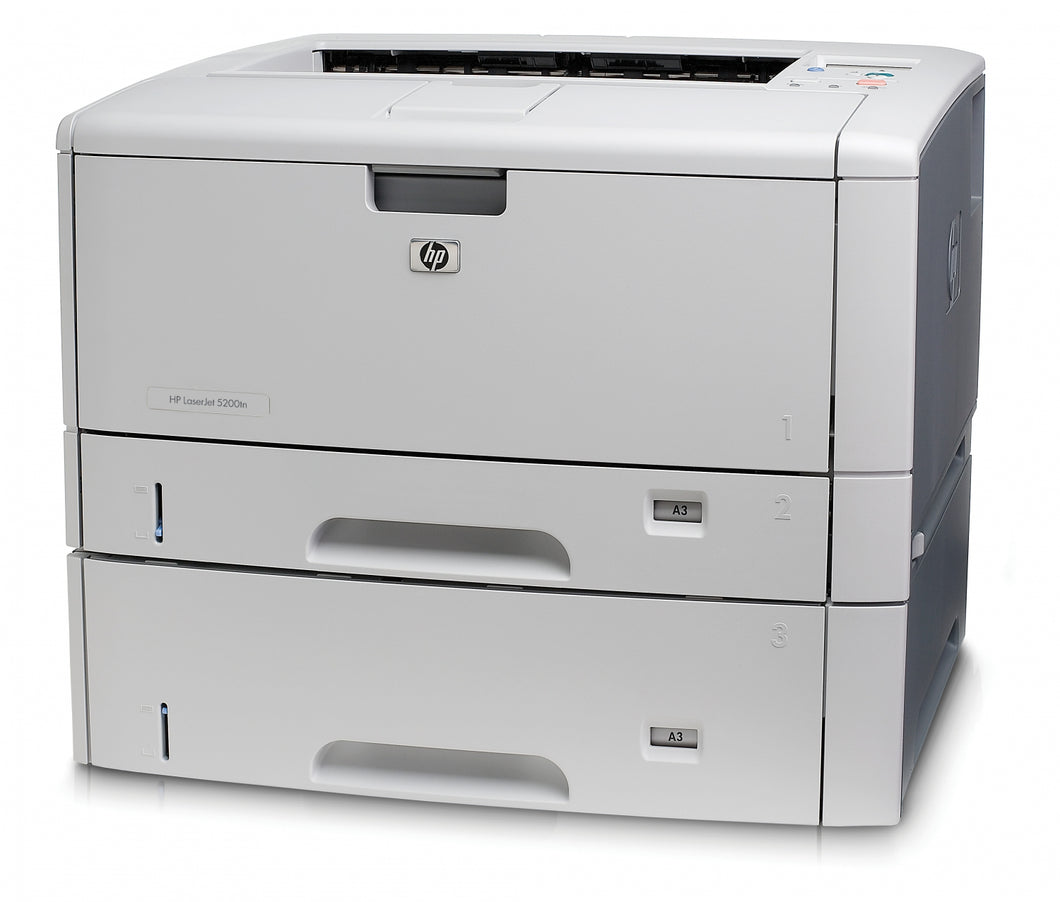

HP LaserJet 5200TN (Remanufactured) Q7545A

HP LaserJet 5200TN (Remanufactured) Q7545A

$2,188.77
$949.99
What's in the box

HP LaserJet 5200 Printer, 500 Sheet Feeder, and Power Cord.
 (TONER SOLD SEPARATELY)

Summary

No excuses allowed. HP delivers a power-packed, black-and-white, wide-format A3 laser intended to enable business performance. Users work efficiently with fast print—up to 35 ppm—and first-page-out speeds. Incredibly easy to use and manage—with HP supplies, HP Smart technology,[8] and a choice of management tools—spend more time on your job and less on your printer. See crisp, clear results—always. And tailor this machine to fit current needs and future needs as business grows.

Related products

Technical Specifications
Connectivity
Connectivity, standard
1 IEEE-1284 parallel; 1 USB; 1 Fast Ethernet 10/100; 1 EIO
Wireless capability
Optional, enabled with purchase of a hardware accessory
Connectivity, optional
HP Jetdirect 175x Fast Ethernet Print Server (J6035G), HP Jetdirect en3700 Fast Ethernet Print Server (J7942G), HP Jetdirect 620n Fast Ethernet Print Server (J7934G), HP Jetdirect 625n Gigabit Ethernet Print Server (J7960G), HP Jetdirect 635n IPv6/IPsec Print Server (J7961G), HP Jetdirect ew2400 802.11g Wireless Print Server (J7951G)
Digital sending
Control panel
32 x 160 mm backlit graphical display; 7 buttons (Back arrow, Down arrow, Help, Menu, Pause job, Start, Status, Up arrow); 3 LEDs (Attention, Data, Ready)
Media handling
Duplex printing
Automatic (optional)
Recommended media weight (duplex)
16 to 32 lb
Recommended media weight (duplex)
60 to 120 g/m2
Standard media sizes (duplex)
A3, A4, A4 rotated, A5, B4, B5, 8K, 16K, executive (JIS)
Recommended monthly page volume note
HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
Recommended monthly page volume
2500 to 10,000
Duty cycle note
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
Duty cycle (monthly, letter)
Up to 65,000 pages
Duty cycle (monthly, A4)
Up to 65,000 pages
Standard input capacity (envelopes)
Up to 10 envelopes
Maximum input capacity (sheets)
Up to 850 sheets
Input capacity
Up to 850 sheets
Standard output capacity (envelopes)
Up to 50 envelopes
Maximum output capacity (sheets)
Up to 250 sheets
Output capacity
Up to 250 sheets
Standard output capacity (transparencies)
Up to 250 sheets
Media sizes, custom
Tray 1: 3 x 5 in to 12.28 x 18.5 in; Tray 2: 5.8 x 8.3 in to 11.69 x 17 in; Tray 3: 5.8 x 8.3 in to 11.69 x 17 in
Media sizes, custom
Tray 1: 76.2 x 127 mm to 312 x 470 mm; Tray 2: 148 x 210 mm to 297 x 431.8 mm; Tray 3: 148 x 210 mm to 297 x 431.8 mm
Standard media sizes (duplex, imperial)
Executive, legal, letter, letter rotated, 8.5 x 13 inch, 11 x 17 inch
Paper trays, maximum
3
Paper trays, standard
3
Media size, tray 1
A3, A4, A4 rotated, A5, A6, B4 (JIS), B5, B5 (JIS), B6 (JIS), C5, DL, executive, executive (JIS), legal, letter, letter rotated, monarch, postcard (JIS), DPostcard (JIS), statement, RA3, 8K, 16K, #10, 76.2 x 127 mm to 312 x 470 mm
Media size, tray 2
A3, A4, A4 rotated, A5, B5, B4, letter, letter rotated, legal, executive, executive (JIS), 8.5 X 13, 11 X 17, 8K, 16K, custom
Media size, tray 3
A3, A4, A4 rotated, A5, B5, B4, executive, executive (JIS), legal, letter, letter rotated, 8K, 16K, 8.5 x 13 inch, 76.2 x 127 mm to 297 x 431.8 mm
Media types
Paper (color, letterhead, light, plain, preprinted, prepunched, recycled, rough, toughpaper), bond, cardstock, envelope, labels, transparency, vellum
Paper handling input, standard
100-sheet multipurpose tray, 250-sheet input tray, 500-sheet input tray
Paper handling output, standard
250-sheet output bin
Media sizes supported
Letter, letter rotated, legal, executive, statement, 8.5 x 13 in, 11 x 17 in, 12 x 18 in, envelopes (No.10, Monarch, DL)
Media sizes supported
A3, A4, A4 rotated, A5, A6, B4 (JIS), B5, B5 (JIS), B6 (JIS), C5, executive (JIS), postcard (JIS), DPostcard (JIS), RA3, 8K,16K
Media type and capacity, tray 1
Sheets: 100
Media type and capacity, tray 2
Sheets: 250
Media type and capacity, tray 3
Sheets: 500
Supported media weight
Tray 1: 16 to 53 lb; Tray 2, 3: 16 to 32 lb
Media weights by paper path
Tray 1: 60 to 199 g/m2; Tray 2, 3: 60 to 120 g/m2
Media weight (tray 1)
60 to 199 g/m2
Media weight (tray 2)
60 to 120 g/m2
Media weight (tray 3)
60 to 120 g/m2
Memory
Memory, maximum
512 MB
Memory, standard
64 MB
Memory technology
Memory Enhancement technology (MEt)
Memory slots
One 100-pin DDR DIMM slot, 2 CompactFlash slots
Memory upgrade
Expandable to 512 MB using a single open 100-pin DDR DIMM slot
Networking
Network interface
HP Jetdirect Fast Ethernet embedded print server; HP Jetdirect 802.11g wireless print server
Network capabilities
Management via EWS and Web Jetadmin; multiple NOS support; multi-protocol switching; 802.1x and user/group authorization, Novell support, queue management, and upgradeable firmware on 620n/625n/635n; SSL; SNMPv3, IPSEC support on 635n
Network ready
Standard
Photography
Print colors maximum
1
Ports
Ports
1 IEEE-1284 parallel; 1 USB; 1 Fast Ethernet 10/100; 1 EIO
Power
Power consumption (active)
600 watts
Power consumption footnote
Values subject to change, see http://www.hp.com/support/lj5200 for current information.
Power consumption
600 watts (printing), 37.5 watts (ready), 7.5 watts (sleep), 0.12 watts (off)
Power consumption (manual-off)
0.12 watts
Power consumption (sleep)
7.5 watts
Power consumption (standby)
37.5 watts
Typical electricity consumption (TEC) number
2.987 kWh/Week
Power
Input voltage: 110 to 127 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz); 220 to 240 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz)
Power supply type
Built-in power supply
Printing
Colour(s) of print cartridges (Not Included)
Black
Number of print cartridges (Not Included)
1 (black)
Page yield footnote
For information on cartridge page and photo yields, see http://www.hp.com/go/pageyield
SureSupply connection type
Direct and Network
SureSupply note
HP SureSupply alerts you when your print cartridge is running low and helps you purchase online or locally through HP or a participating retailer. For more information, visit http://www.hp.com/go/SureSupply; only available with Original HP supplies; Internet access required.
SureSupply software driver
No
SureSupply supported
Yes
Economical printing
Economode
Print colours
No
Print languages
HP PCL 6, HP PCL 5e, HP Postscript 3 emulation
Print quality black (best)
Up to 1200 x 1200 dpi
Print quality black (normal)
Up to 1200 x 1200 dpi
Resolution technology
REt, 300, 600, HP FastRes 1200, HP ProRes 1200
Print speed black (best, A3)
Up to 18.5 ppm
Print speed footnote
Exact speed varies depending on the system configuration, software program, document complexity, network, media width, media weight, environment, and job size.
Print speed black (normal, letter)
Up to 35 ppm
Print speed black (normal, A4)
Up to 35 ppm
Fonts and typefaces
103 built-in scalable PCL, 93 internal PS
Print technology
Laser
First page out black (letter, cold start)
As fast as 10 sec
First page out black (letter, ready)
As fast as 10 sec
First page out black (letter, sleep)
As fast as 10 sec
First page out black (A4, ready)
As fast as 10 sec
Printer management
HP Web Jetadmin, HP LaserJet Utility (Mac)
Bottom margin (A4)
6 mm
Left margin (A4)
3.4 mm
Right margin (A4)
4.9 mm
Top margin (A4)
3 mm
Maximum print area
303 x 466 mm
Warm-up time
40 sec
Processor
Processor
MIPS
Processor speed
460 MHz
Software
Downloadable software
Download HP Universal Print Driver for Windows and HP Easy Printer Care for Windows from http://www.hp.com
Software included
Print drivers and installation software on CD-ROM
Compatible operating systems
Microsoft® Windows® Vista®, Windows XP Home, Windows XP Professional, Windows Server 2003, Windows 2000, Mac OS X v10.2.8, 10.3, 10.4, 10.5, 10.6, Linux (see http://http://www.hplip.net)
Driver updates
Recent printer drivers for all supported operating systems are available at http://www.hp.com/support/lJ5200 and http://www.hp.com/gupport/5200L
Printer drivers included
HP PCL 5, HP PCL 6, HP PostScript Level 3 emulation
Storage
Hard disk
Optional
System
Security
Management security: SNMP v 3, SSL/TLS (HTTPS), 802.1x authentication; password protection, user or group authorization (wih HP Jetdirect 620n, 625n, 635n EIO print servers), IPSEC security (wih HP Jetdirect 635n EIO print servers), wireless network security: WPA (Wi-Fi Protected Access), WEP encryption (40-/64- and 128-bit), 802.1x authentication (EAP-PEAP, LEAP, EAP-TTLS, EAP-TLS, EAP-MD5) with RADIUS servers
Minimum system requirements
Microsoft® Windows® 7 ready. For more information go to http://www.hp.com/go/windows7. Some features may not be available. Windows Vista®: 1 GHz processor, 512 MB RAM (check User’s Guide for minimum hard drive space); Windows XP Home, XP Professional: 233 MHz processor, 64 MB RAM; Windows Server 2003 (standard edition): 550 MHz processor, 128 MB RAM; Windows 2000: 133 MHz processor, 64 MB RAM; 20 MB available hard disk space, CD-ROM drive or Internet connection, IEEE-1284 compliant bidirectional parallel port, USB port
Minimum system requirements for Macintosh
Mac OS X v10.2.8, 10.3, 10.4, 10.5, 10.6; Power PC G3, G4, G5, or Intel Core processor; 128 MB RAM; 160 MB available hard disk space; Bonjour (Rendezvous) compatible; Apple Talk or USB connectivity solution
Upgradability
Printer firmware and networking firmware can be remotely upgraded


Environmental information
Recommended operating temperature range 50 to 91º F
Operating altitude (imperial) 10000 ft
Storage humidity 10 to 80% RH


Compliance information
Electromagnetic compatibility EMC: CISPR 22: 1993/A1, A2; EN 55022: 1994/A1, A2 Class B; EN 61000-3-2: 2000; EN 61000-3-3: 1995/A1; EN 55024: 1998/A1, A2; FCC Title 47 CFR, Part 15 Class B/ICES-003, Issue 4/GB9254-1998, GB17625.1-2003; EMC Directive 89/336/EEC, the Low Voltage Directive 73/23/EEC, and carries the CE-Marking accordingly
Energy efficiency ENERGY STAR® qualified
ENERGY STAR® qualified Yes
Safety Argentina (TUV S Mark-Rs.92/98/Ds.1009/98), Australia (AS/NZ 3260), Canada (cUL-CAN/CSA C22.2 No.60950-1-03), China (GB4943), EU (CE Mark-Low Voltage Directive 73/23/EEC), Germany (TUV-EN60950-1, IEC 60825-1), Mexico (NOM NYCE-NOM 019 SCFI), Russia (GOST-R50377), South Africa (IEC 60950-1, IEC60825-1), USA (UL-UL 60950-1; FDA-21 CFR Chapter 1 Subchapter J for lasers); Class 1 Laser/LED Product


Physical information
Package weight 94 lb
Package dimensions 31.5 x 23.6 x 28.8 in
Quantity per pallet 6
